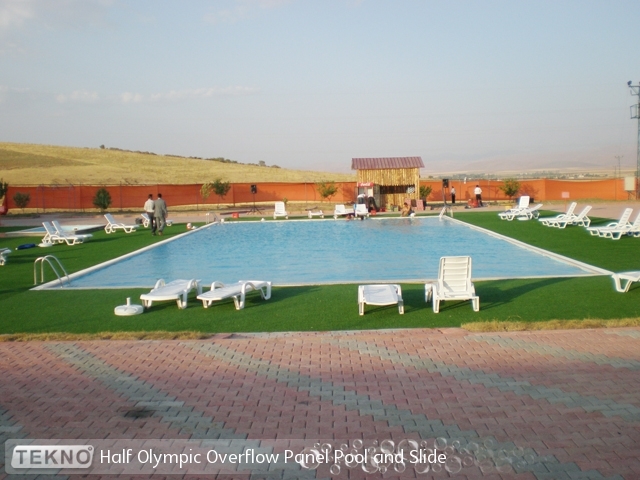

Half Olympic Overflow Panel Pool and Slide

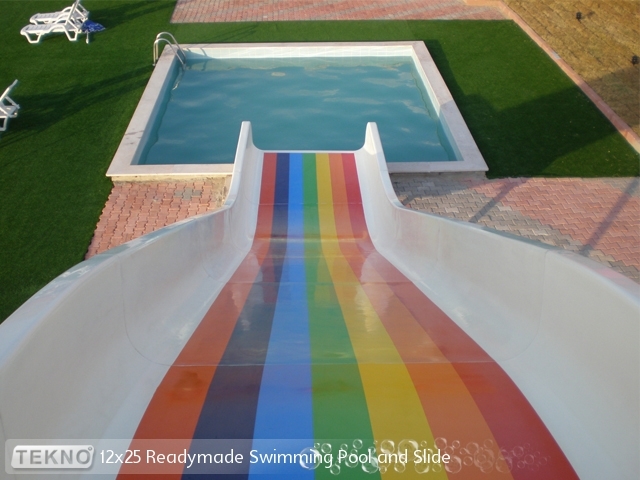

12x25 Readymade Swimming Pool and Slide

LOCATION : Kahramanmaraş

NAME OF PROJECT: Aqua Park
PLACE OF PROJECT: Elbistan, KAHRAMANMARAŞ
OWNER OF PROJECT: Demirkayalar Collec.Company ( Şahin DEMİRKAYA )
CONTENT OF PROJECT: Construction of Turn Key Half Olympic Swimming Pool, Kid Swimming Pool, Slide and Slide Fall Pool
BEGINNING OF PROJECT: 01.06.2007
DATE OR COMPLETION OF PROJECT: 17.07.2007
DURATION OF PROJECT: 47 days
DETAILS OF PROJECT:

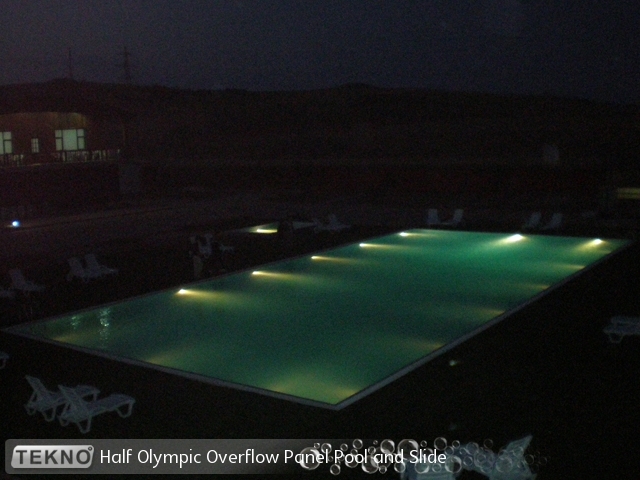

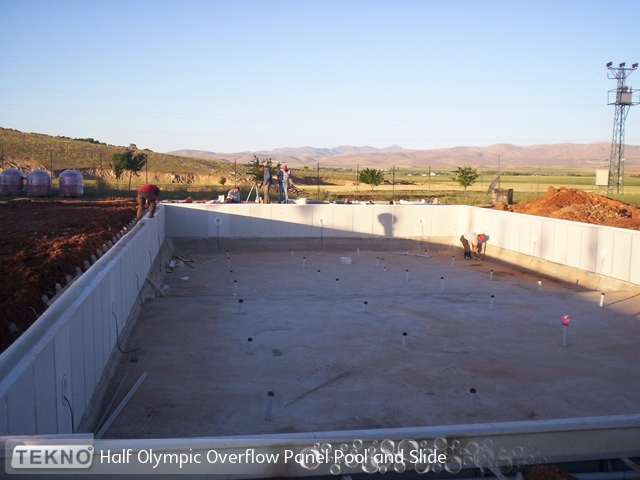

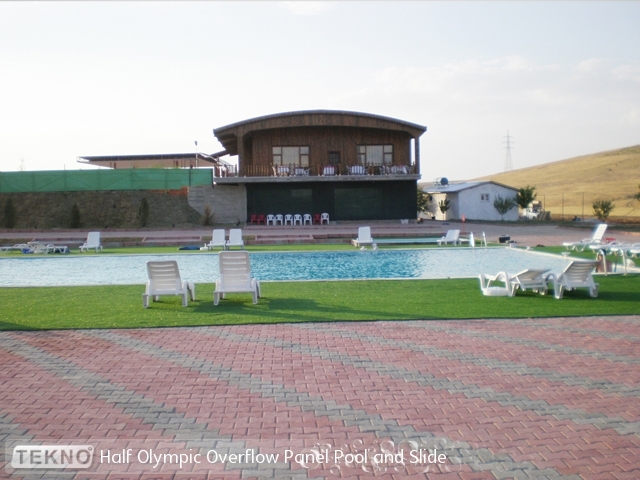

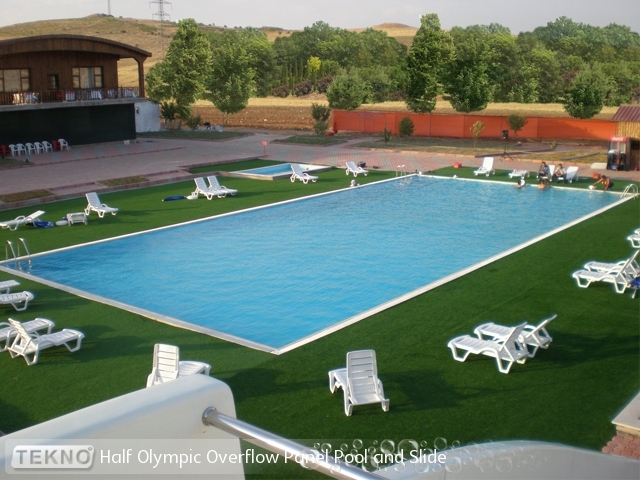

- Construction of 12 x 25 m measurement, 1.4 - 1.8 m depth 300 m² area and 520 m³ water volumed overflowing panel-liner pool
- Construction of 3 x 6 m, 0.6 depth, 18 m² interior skimmer concrete-liner kid pool

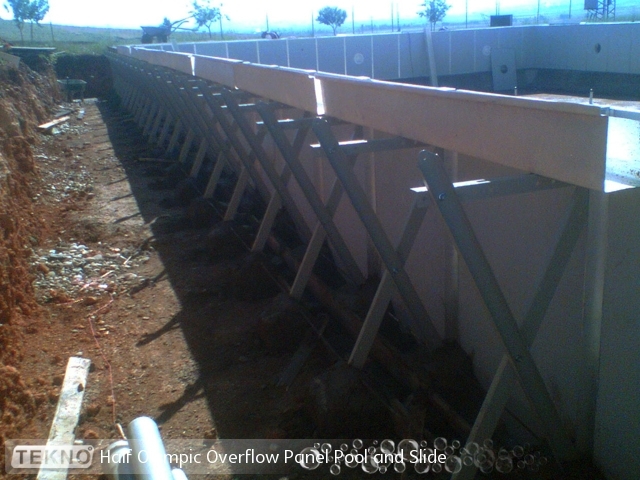

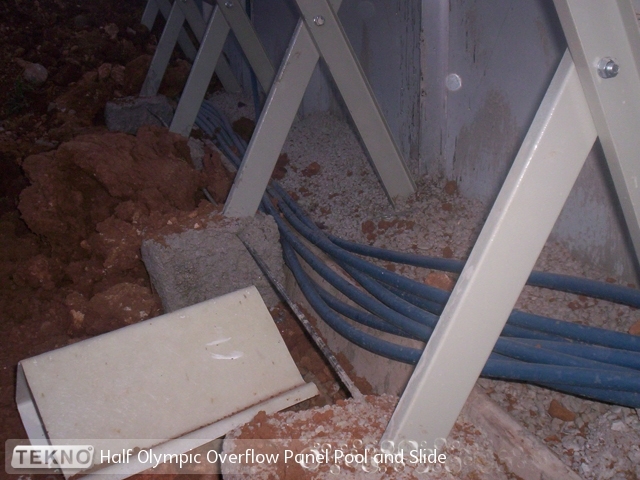

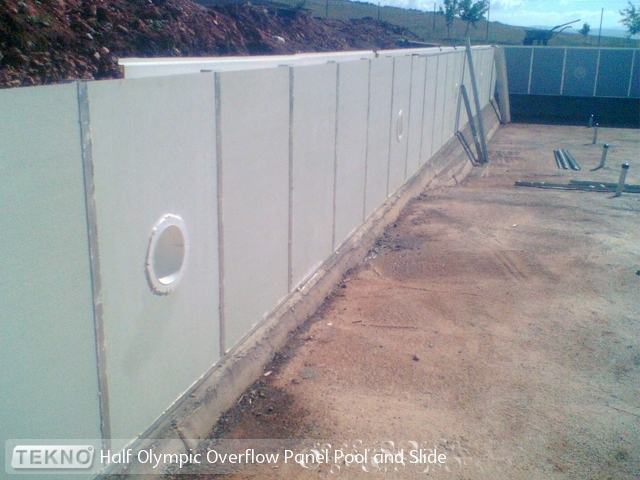

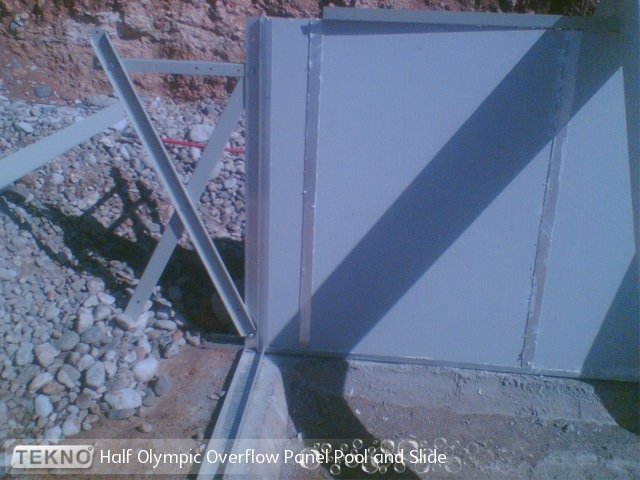

- Readymade locked panel with panel construction resistant to earthquake
- Construction of readymade oval surfaced polyester overflow channel

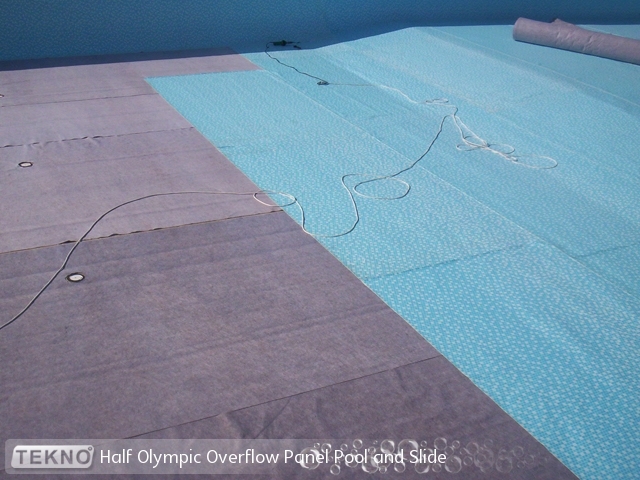

- Mosaic ornamented liner interior covering
- Construction of 4x8 m measurement, 1.4 depth, 32 m² interior skimmer concrete-ceramic slide falling pool
- Construction of 115 m³/h capacity sand filtration system (Filtration cycle duration: net 5 hour/all pool water)

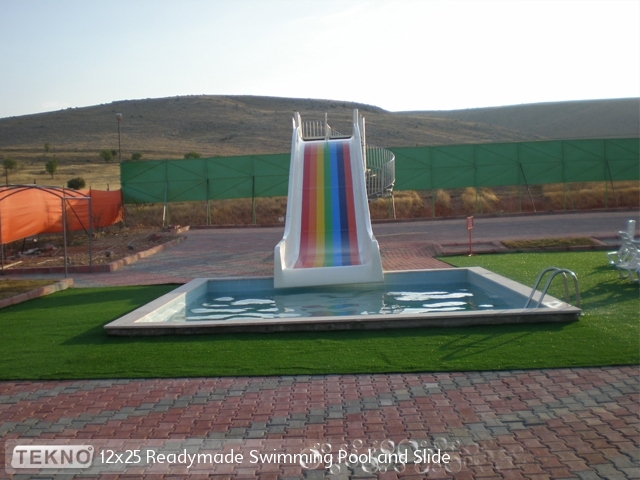

- Construction of 13 m wide band rainbow slide
- Construction of 120 m³/hour capacity water technique system for slide
